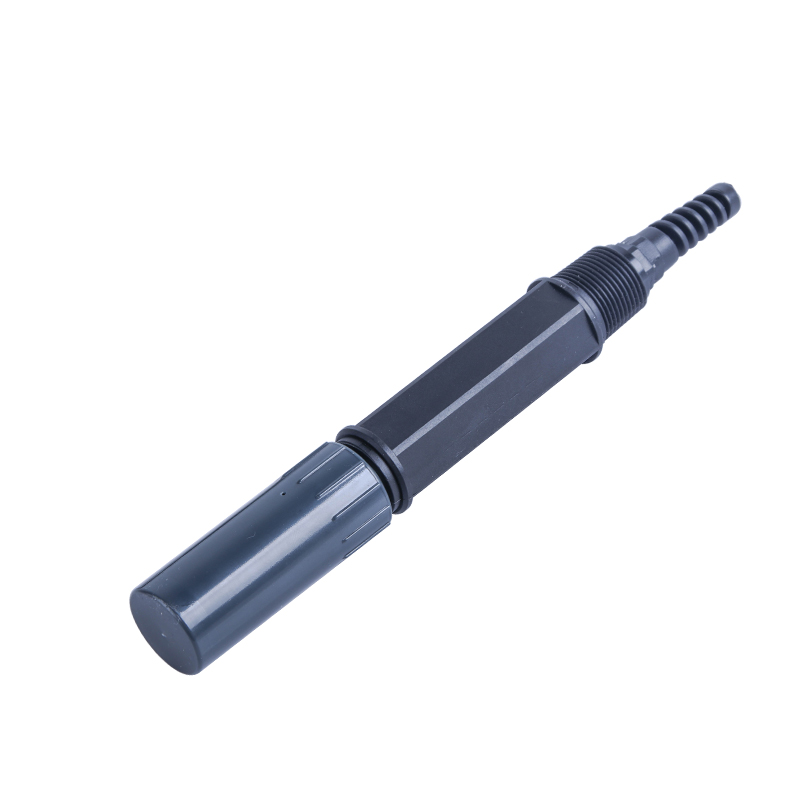

SUP-TDS7002 4 Electrodes conductivity sensor

SUP-TDS-7002 a variety of functions in one: conductivity EC / TDS measurement capabilities to achieve two in one, cost-effective integrated design to support the boiler water, RO water treatment, sewage treatment, pharmaceutical industry and other liquid measurement and monitoring. Features Range:10us/cm~500ms/cmResolution:±1%FSTemp compensation:NTC10K (PT1000, PT100, NTC2.252K optional)Temperature range: 0-50℃Temperature accuracy:±3℃

Products Details

  • Specification
  Product  4 Electrodes conductivity sensor
  Model  SUP-TDS7002
  Measure range  10us/cm~500ms/cm
  Accuracy  ±1%FS
  Thread  NPT3/4
  Pressure 5 bar
  Material  PBT
  Temp compensation  NTC10K (PT1000,  PT100, NTC2.252K optional)
  Temperature range 0-50℃
  Temperature accuracy  ±3℃
  Ingress protection  IP68
  • Introduction
SUP-TDS7002 online conductivity/resistivity sensor, an intelligent online chemical analyzer, is widely applied for continuous monitoring and measurement of EC value or TDS value or Resistivity value and temperature in the solution in the industry of thermal power, chemical fertilizer, environmental protection, metallurgy, pharmacy, biochemistry, food and water etc. 44
  • Application
4546476-6856
  • Description

Intelligent temperature compensation design: the instrument integrates l automatic and manual temperature compensation modes, supports ntc10k temperature compensation elements, is suitable for a variety of measurement occasions, and the temperature compensation type is adjustable with one key.

Multiple functions: the conductivity / EC / TDS measurement capability realizes the integrated design of multiple in one and high cost performance, and supports the measurement and monitoring of various liquids such as boiler water, RO water treatment, sewage treatment and pharmaceutical industry.
