Sinomeasure

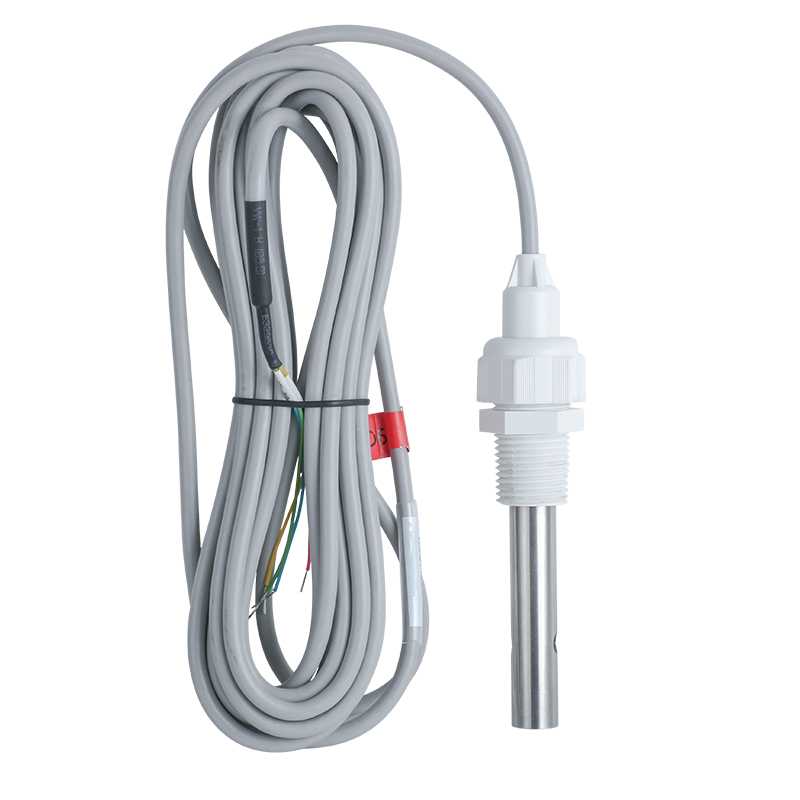

SUP-TDS6012 Conductivity sensor

SUP-TDS-6012 A variety of functions in one: conductivity EC / TDS measurement capabilities to achieve two in one, cost-effective integrated design to support the boiler water, RO water treatment, sewage treatment, pharmaceutical industry and other liquid measurement and monitoring. Features Range:0.01 electrode: 0.02～20.00us/cm 0.1 electrode: 0.2～200.0us/cm 1.0 electrode: 2～2000us/cm 10.0 electrode: 0.02～20ms/cm

send email to us

Products Details

Specification

Product	TDS sensor, EC sensor, Resistivity sensor
Model	SUP-TDS6012
Measure range	0.01 electrode: 0.01~20us/cm
	0.1 electrode: 0.1~200us/cm
	1.0 electrode: 1~2000us/cm
Accuracy	±1%FS
Thread	NPT 1/2 、 NPT 3/4
Pressure	4 bar
Material	Stainless steel
Temp compensation	NTC10K / PT1000 optional
Temperature range	0-60℃
Temperature accuracy	±3℃
Ingress protection	IP65
