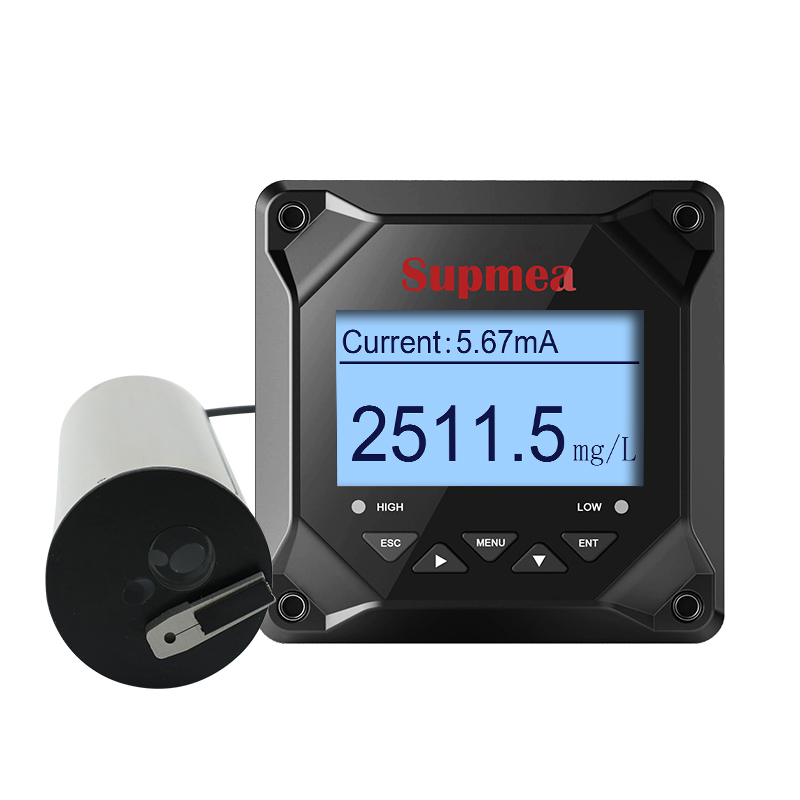

SUP-PSS100 Suspended solids/ TSS/ MLSS meter

SUP-PSS100 Suspended solids meter based on the infrared absorption scattered light method used to measure liquid suspended solids and sludge concentration. Features Range: 0.1 ~ 20000 mg/L; 0.1 ~ 45000 mg/L; 0.1 ~ 120000 mg/LResolution:Less than ± 5% of the measured valuePressure range: ≤0.4MPaPower supply: AC220V±10%; 50Hz/60HzHotline: +86 15867127446 (WhatApp)Email : info@Sinomeasure.com

Products Details

  • Advantage
SUP-PSS100 Suspended solids meter based on the infrared absorption scattered light method and combined with the application of ISO7027 method, can guarantee the continuous and accurate detection of suspended solids and sludge concentration. Based on ISO7027, infrared double scattering light technology will not be affected by chroma for the measurement of cuspended colids and cludge concentration value. According to the usage environment, self-cleaning function can be equipped with. It assures the stability of data and reliability of performance; with the built-in self-diagnosis function, it can make sure the accurate data be delivered; besides, the installation and calibration is quite simple.
  • Application
· Primary, secondary and return-activated sludge (RAS) at Municipal wastewater treatment plants · Backwash sludge from sand or membrane filters at Municipal drinking water treatment plants · Influent and effluent at Industrial water and wastewater treatment plants · Process slurries at Industrial refining and manufacturing plants.
  • Specification
 Product Suspended solids/ TSS/ MLSS meter
 Model SUP-PSS100
 Measure range 0.1 ~ 20000 mg/L; 0.1 ~ 45000 mg/L; 0.1 ~ 120000 mg/L
 Indication  resolution Less than ± 5% of the measured value
 Pressure range ≤0.4MPa
 Flow velocity ≤2.5m/s、8.2ft/s
 Storage Temperature -15~65℃
 Operating temp 0~50℃
 Calibration Sample Calibration, Slope Calibration
 Cable length Standard 10-Meter Cable, Max Length: 100 Meters
 High voltage baffle Aviation Connector, Cable Connector
 Main materials Main Body:SUS316L (Ordinary Version),
Titanium Alloy (Seawater Version)
Upper and Lower Cover: PVC; Cable: PVC
 Ingress protection IP68(sensor)
 Power Supply AC220V±10%,5W Max,50Hz/60Hz
