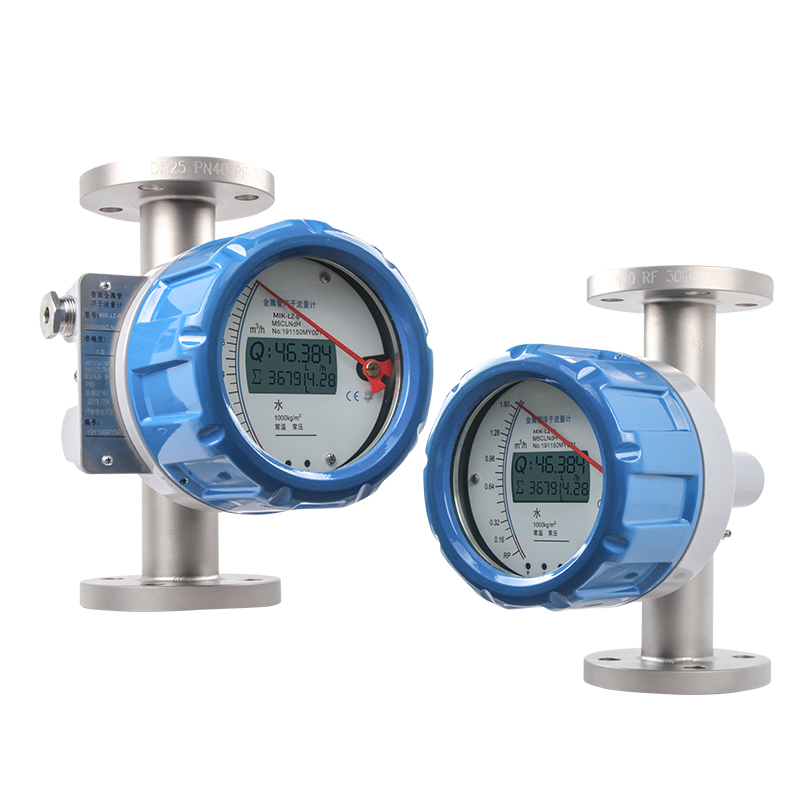

| Porduct | Metal Tube Rotameter |
| Model | SUP-LZ |
| Range | Water (20℃) (01~200000) L/h Air (20,0.1013MPa) (0.03~3000) m³/h |
| Range ratio | Standard 10:1 Optional 20:1 |
| Accuracy | Standard: 1.5% Optional:1% Gas: 1.5% |
| Pressure | standard：DN15~DN50≤4.0MPa DN80~DN200≤1.6MPa Optioanl: DN15~DN50≤32MPa DN80~DN200≤16MPa |
| Connection | Flange，Clamp，Thread， Sanity thread |
| Medium temperature | Standard：-20℃~120℃ PTFE 0℃~80℃ High temp：120℃~450℃ low temp： -80℃~-20℃ |
| Environment temperature | Remote type: -40℃~85℃ Pointer type/local alarm type -40℃~100℃ |
| Power supply | Standard type: 24VDC two-wire system (4-20) mA (12VDC~32VDC) Alarm type: 24VDC multi-wire system (4-20) mA (12VDC~32VDC) AC type: (100~240) VAC 50Hz~60Hz Battery type: 3.6V@9AH lithium battery |
| Load resistance | RLmax: 600Ω |
| Alarm Output | Upper and lower limit instantaneous flow alarm Local alarm type: upper limit, lower limit or upper and lower limit instantaneous flow alarm (Contact capacity 1A@30VDC) Upper limit and lower limit alarm hold range is a maximum of 60% of range, and the minimum interval between upper and lower limit alarms is 10% of range |
| Pulse output | Cumulative pulse output is output of optocoupler signal isolation Darlington tube (internal 24VDC power supply, maximum current 8mA) |
| Ingress protection | IP65 |
