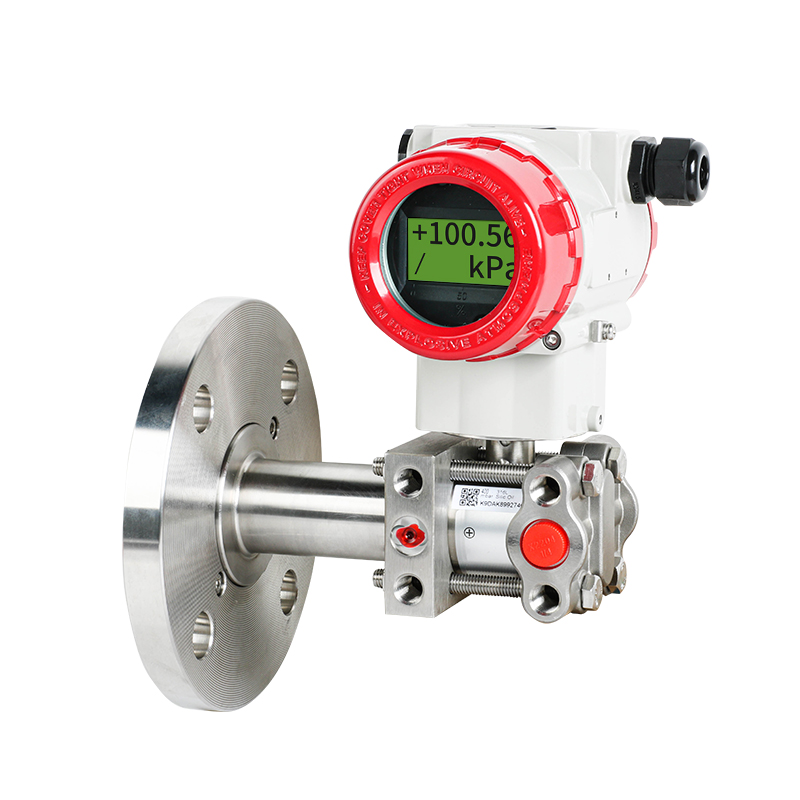

SUP-2051LT Flange mounted differential pressure transmitters

SUP-2051LT Flange-mounted differential pressure transmitter measures the height of the tank body, according to the principle that the pressure generated by the liquid of different specific gravity at different heights has a linear relationship Features Range: 0-6kPa~3MPaResolution:0.075%Output: 4-20mA analog output Power supply: 24VDC

Products Details

  • Specification
 Product Differential Pressure transmitter
 Model SUP-2051LT
 Measure range 0-6kPa~3MPa
 Indication  resolution 0.075%
 Ambient temperature -40 ~ 85 ℃
 Output signal 4-20ma analog output / with HART communication
 Shell protection IP67
 Diaphragm material Stainless steel 316L, Hastelloy C, support other custom
 Product shell Aluminum alloy, the appearance of epoxy coating
 Weight 3.3Kg
  Reference List of the Relationship between Span Code and Span
Span Code Min. Span Max. Span Rated Working Pressure (Max.)
B 1kPa 6kPa The rated pressure of level flange
C 4kPa 40kPa
D 25kPa 250kPa
F 200kPa 3MPa
Reference List of the Relationship between Level Flange and Minimun Span
Level Flange Norminal Diameter Min. Span
Flat Type DN 50/2 '' 4kPa
DN 80/2 '' 2kPa
DN100/4'' 2kPa
Insert Type DN 50/2'' 6kPa
DN 80/3'' 2kPa
DN 100/4'' 2kPa

  • Performance
It is suitable for measuring fluid media such as ultra-high temperature 600℃, high viscosity, corrosiveness, easy precipitation, etc.performance Measurement range (No Shift): 0-6kPa~3MPa Filling fluid: silicone oil, vegetable oil Diaphragm: SS316L, Hastelloy C, Tantalum, SS316L Gold Plated, SS316L Plated PTFE, SS316L Plated PDA, SS316L Plated FEP
